Product Details

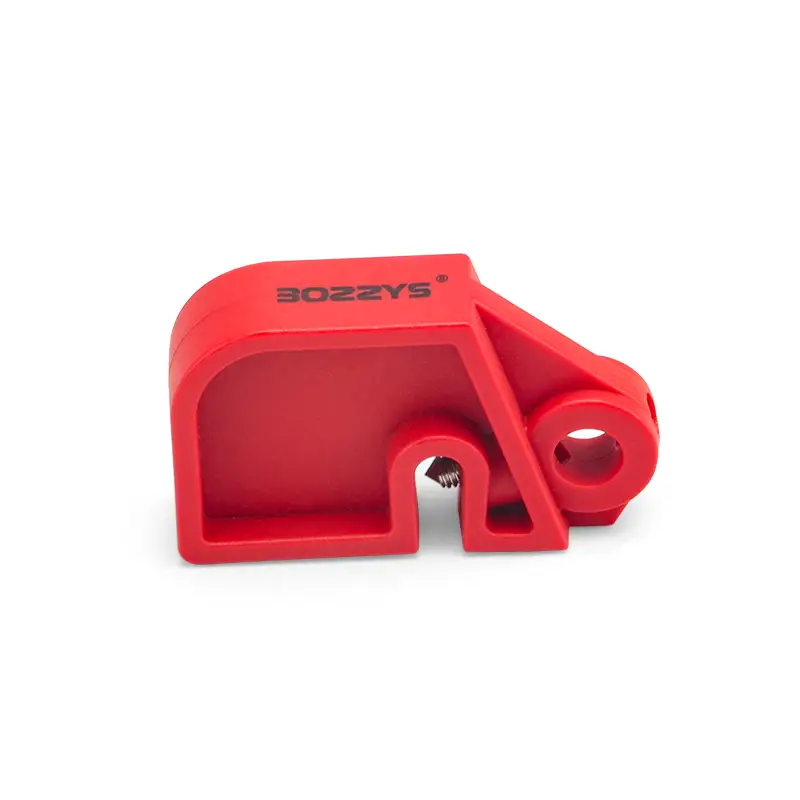

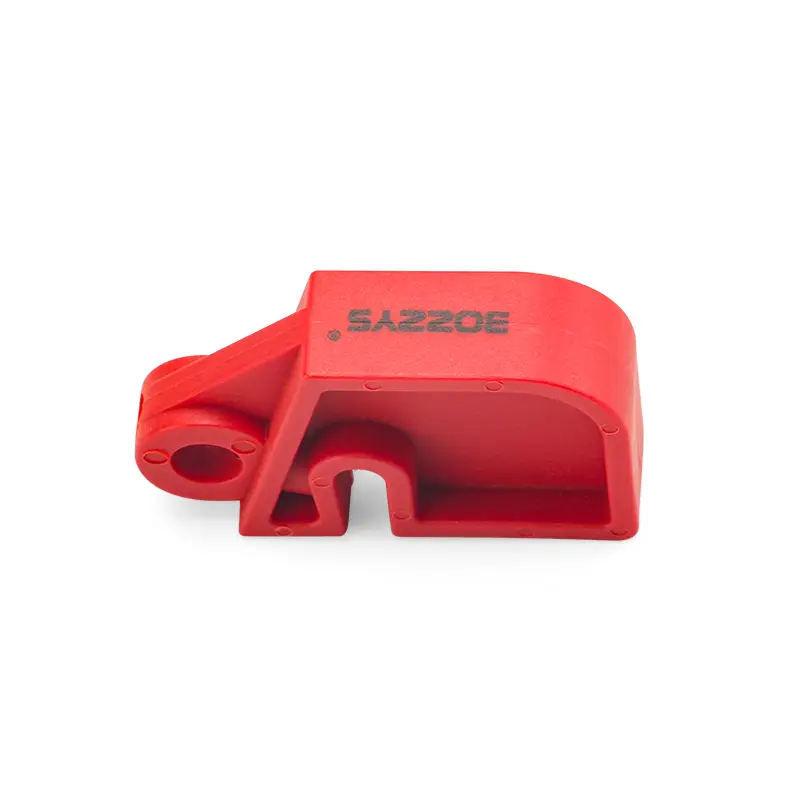

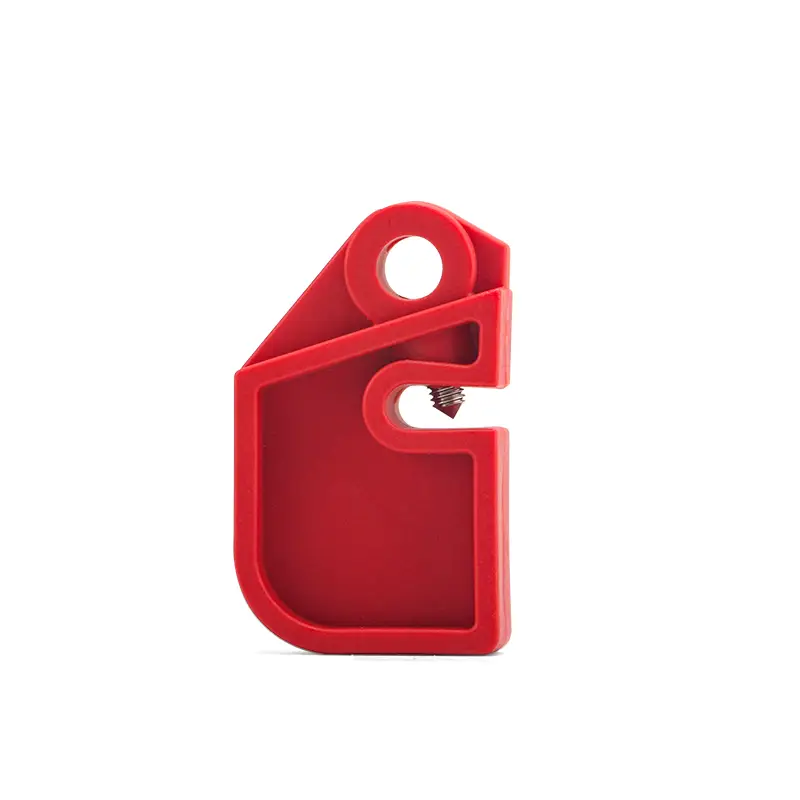

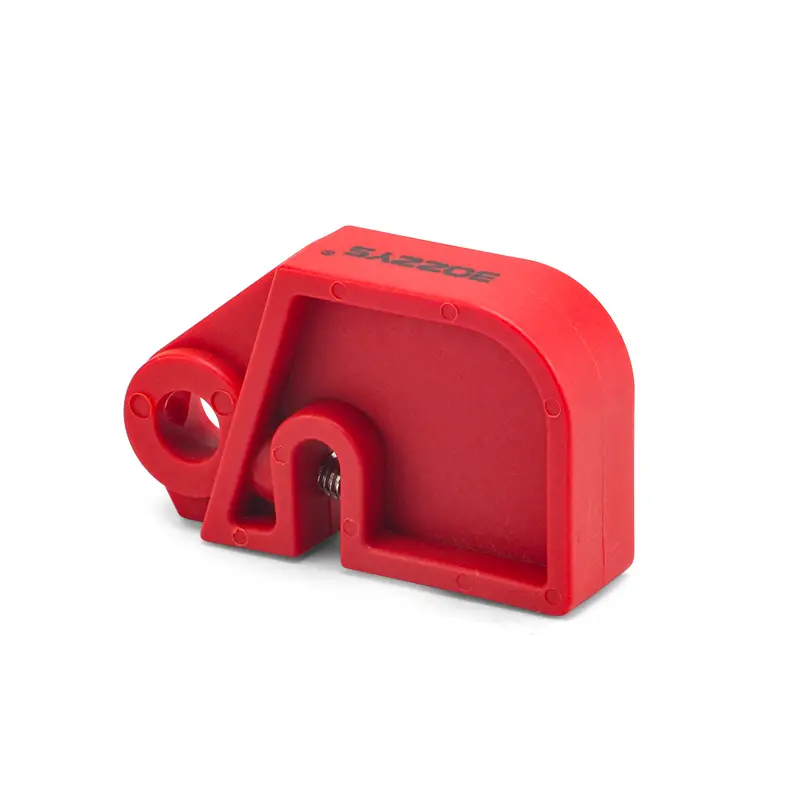

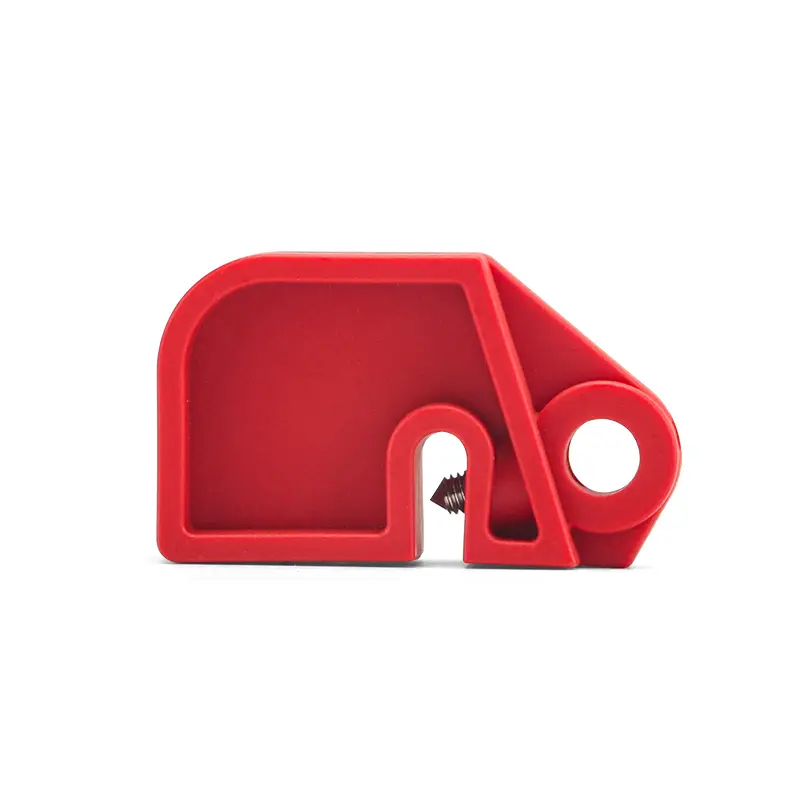

a.Made from rugged reinforced nylon PA.
b.Can lock it with screw driver.
c.Can accommodate one safety padlock with shackle diameter ≤7mm.

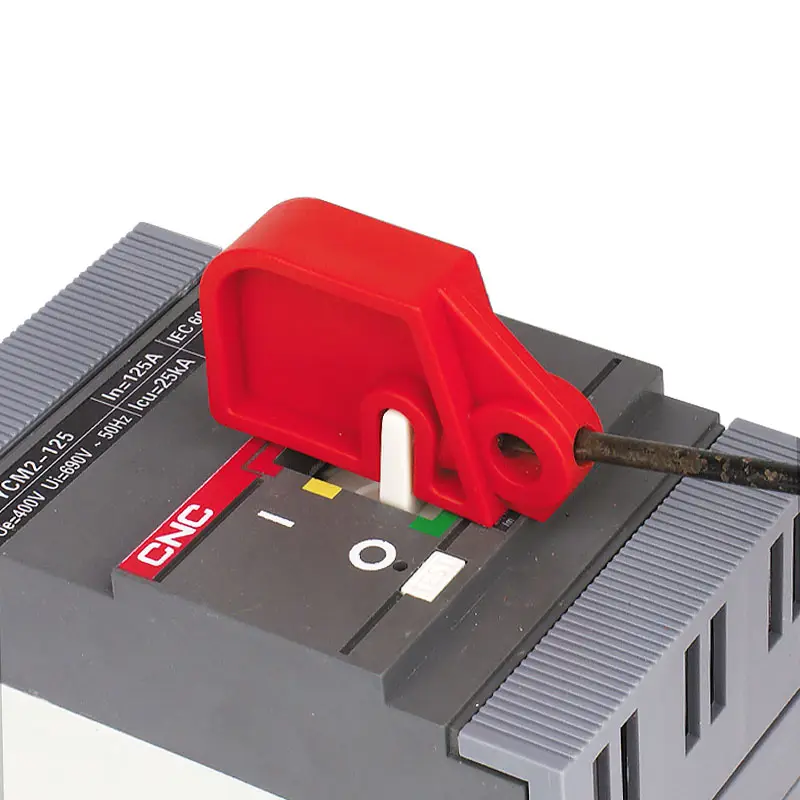

d.Can lock all kinds of circuit breakers.

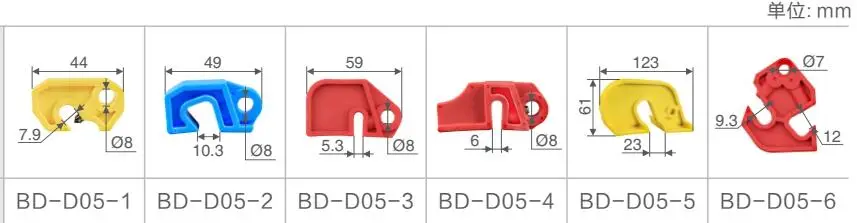

Part Code	Description

BD-D05	Means one series, each type one piece, 6 pieces in total.
BD-D05-1	Suitable for single pole miniature circuit breakers with handle width ≤7.7mm
BD-D05-2	Suitable for 2 to 4 poles miniature circuit breakers
BD-D05-3	Suitable for mini and middle size circuit breakers with handle width ≤5mm
BD-D05-4	Suitable for mini and middle size circuit breakers with handle width ≤5mm
BD-D05-5	Suitable for large size circuit breakers
BD-D05-6	Suitable for mini size circuit breakers with handle width ≤9.3mm middle size circuit breakers with handle width ≤12mm

Application Industries

ZX electrical safety locks are suitable for various specifications of circuit breakers, wall switches, emergency stop button switches, and electrical plugs, etc. We also developed and produce various safety locks: safety padlocks, valve locks, industrial electrical locks and lock stations, etc., which can meet the safety locks of various equipment and effectively prevent misoperation.
